Çin parfüm şişeleri üzerinde rulo Üretici

Laundry Liquid Beads packing machine laundry beads filling machine Packing machine

Ödeme & teslimat koşulları:
Min sipariş miktarı: 1 SET
Fiyat: US $200000.00

Detay Bilgi

Türü: Dolum Makinesi Satış sonrası hizmet: Çevrimiçi destek, Ücretsiz yedek parça
Garanti: 1 yıl Madde: Model-200 Model-420
Kapasite: 200 adet / dak 420 adet / dak Dolum hassasiyeti: ≤ +/-% 1
Gerilim: 380v Üç fazlı beş tel Hava tüketimi: 1,2m3 / dak (Maksimum başlangıç ​​tepe noktası)
Su tüketimi: 0.8m3 / saat Boyut: 3825 * 2300 * 2400mm 6100 * 2500 * 2500mm
Uygulama: Kimyasal Satış birimleri: Tek öğe
Tek paket boyutu: 300X120X280 cm Tek Brüt Ağırlık: 200.0 kg
Vurgulamak:

liquid filling machine

,

bottle filling machine

Ürün Açıklaması

Automatic Water-soluble Film Packing Machine(Four-rows)

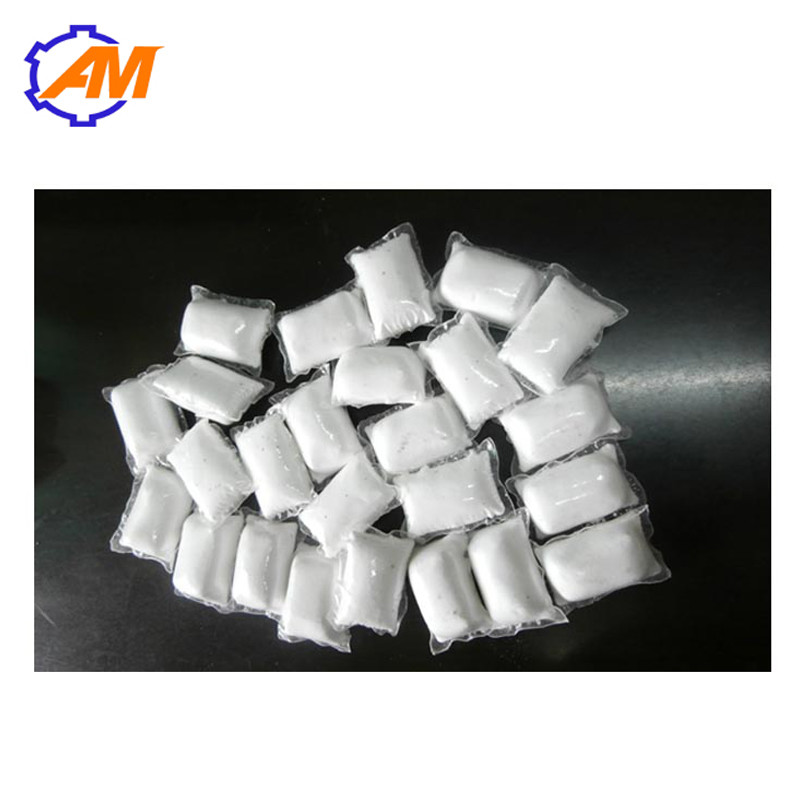

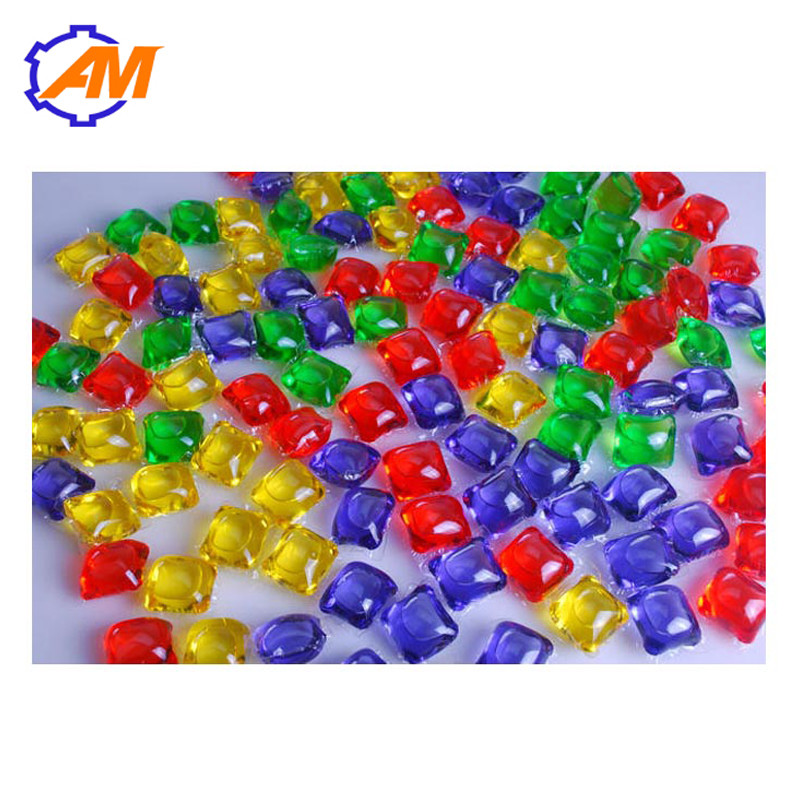

Full automatic water-soluble PVA film packing machine can used to measure an pack pesticide, detergent, medical powder/granule/liquid etc. Water -soluble PVA film has good tensile strength. The product is elastic globular after the film stretching and packing.

This machine adopts full automatic control packing way. It can automatically make pod, fill, seal, cut and discharge. It don’t need people to touch the materials, easy operation.
Laundry Liquid Beads packing machine laundry beads filling machine Packing machine 0
Technical Parameters
Model
AM-4-100
Machine type
Drum-type
Body shell
304 stainless steel
Component material
Hardened 520 aluminum oxidation treatment, 45# steel chrome plating
Electrical control
Mitsubishi Japan PLC, WEINVIEW Taiwan human-computer interface
Temperature control
PID intelligent control the temperature of heating part
Capacity
4 rows Approx 200 pcs/min
Packing volume range
15-35g
Packing size range
37*53*20mm(Not including sealing side), can be customized
Power voltage
380V, 50Hz
Pneumatic
0.6MPa, 150L/min
Dimension
3000*120*280mm
Weight
450KG
Warranty
1 year



Product

Laundry Liquid Beads packing machine laundry beads filling machine Packing machine 2

Laundry Liquid Beads packing machine laundry beads filling machine Packing machine 4

Laundry Liquid Beads packing machine laundry beads filling machine Packing machine 6

Laundry Liquid Beads packing machine laundry beads filling machine Packing machine 8

Why choose us?
1. We has been engaged in the purification technology and application. And we have the R&D team, performing continuous product research and improvement from time to time.
2. Our products are certificated by the most prestigious national and international institutes.
3. Each procedure of the production process is conducting under the strict quality control system. Our QC inspects each lot of the incoming material and the finished products carefully, so that we can supply the best products for customers.
4. From the design to the producing, each procedure is controlled strictly, so we can control the product costs optimally, and offer products with the best quality and the most competitive price. Win-win is our ultimate purpose.
